Page 9 - InnoRenew CoE International Conference 2022
P. 9

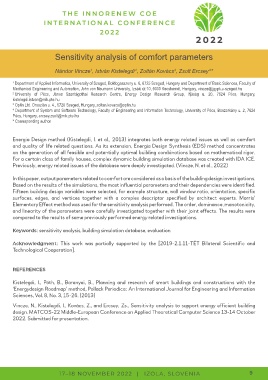

Sensitivity analysis of comfort parameters
Nándor Vincze1, István Kistelegdi2, Zoltán Kovács3, Zsolt Ercsey 4*
1 Department of Applied Informatics, University of Szeged, Boldogasszony u. 6, 6725 Szeged, Hungary and Department of Basic Sciences, Faculty of
Mechanical Engineering and Automation, John von Neumann University, Izsáki út 10, 6000 Kecskemét, Hungary, vincze@jgypk.u-szeged.hu
2 University of Pécs, János Szentágothai Research Centre, Energy Design Research Group, Ifjúság u. 20, 7624 Pécs, Hungary,
kistelegdi.istvan@mik.pte.hu
3 Optin Ltd. Oroszlán u. 4., 6720 Szeged, Hungary, zoltan.kovacs@optin.hu
4 Department of System and Software Technology, Faculty of Engineering and Information Technology, University of Pécs, Boszorkány u. 2, 7624
Pécs, Hungary, ercsey.zsolt@mik.pte.hu
* Corresponding author
Energia Design method (Kistelegdi, I. et al., 2013) integrates both energy related issues as well as comfort
and quality of life related questions. As its extension, Energia Design Synthesis (EDS) method concentrates
on the generation of all feasible and potentially optimal building combinations based on mathematical rigor.
For a certain class of family houses, complex dynamic building simulation database was created with IDA ICE.
Previously, energy related issues of the database were deeply investigated. (Vincze, N. et al., 2022)
In this paper, output parameters related to comfort are considered as a basis of the building design investigations.
Based on the results of the simulations, the most influential parameters and their dependencies were identified.
Fifteen building design variables were selected, for example structure, wall window ratio, orientation, specific
surfaces, edges, and vertices together with a complex descriptor specified by architect experts. Morris’
Elementary Effect method was used for the sensitivity analysis performed. The order, dominance, monotonicity,
and linearity of the parameters were carefully investigated together with their joint effects. The results were
compared to the results of some previously performed energy related investigations.
Keywords: sensitivity analysis, building simulation database, evaluation
Acknowledgment: This work was partially supported by the [2019-2.1.11-TÉT Bilateral Scientific and
Technological Cooperation].
REFERENCES
Kistelegdi, I., Póth, B., Baranyai, B., Planning and research of smart buildings and constructions with the
‘Energydesign Roadmap’ method, Pollack Periodica: An International Journal for Engineering and Information
Sciences, Vol. 8, No. 3, 15-26. (2013)
Vincze, N., Kistelegdi, I., Kovács, Z., and Ercsey, Zs., Sensitivity analysis to support energy efficient building
design. MATCOS-22 Middle-European Conference on Applied Theoretical Computer Science 13-14 October
2022. Submitted for presentation.
17–18 NOVEMBER 2022 I IZOLA, SLOVENIA 9
